Markov Modeling

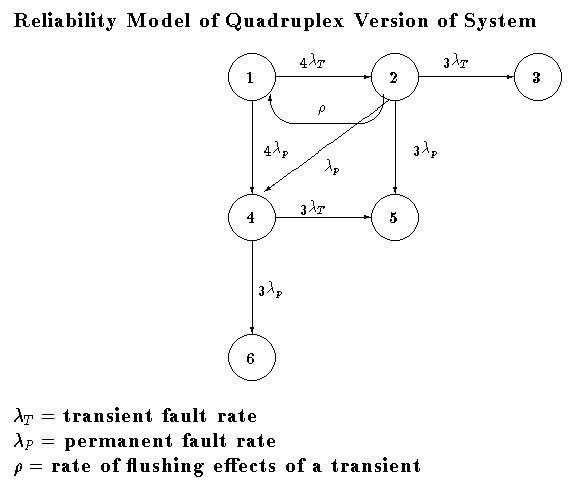

The graphic below gives a markov reliability model for a 4-way redundant system. Such a system can continue operation even if one of the redundant elements fails completely. Failure of two of the elements, however, results in failure of the system.
